Deep Ocean Applications
SAIS UV TUBE LIGHT
Underwater UV Light for Biofouling Prevention.
After corrosion, biofouling is probably the greatest challenge to keep underwater cameras, lights
and instruments in good working order. UV Light helps inhibit marine growth on submerged surfaces.
The SAIS UV LED light is special version of the SAIS rugged, compact, 0 - 100% dimmable Tube Light that contains an Ultraviolet (UV) LED with a peak wavelength of 275 nanometers. This wavelength is often used for sterilization and also discourages bio-fouling underwater. The UV is effective within a range of approximately 6 inches (15 cm) of the light. Typical usage is to connect the light to an interval timer that activates the light for some period of time during each hour of deployment. UV output power is 11.5 mW with a view angle of 125 degrees. The light can tolerate a wide input voltage range of 9 VDC to 36 VDC and draws only 200mA which allows it to be easily integrated into many systems used in the marine environment for a wide range of tasks. Adding the SAIS Ethernet Interface and PoE Adapter on the interface end of the cable makes the light perfect for IoT and Machine Vision applications.
• Wide voltage input range of 9 to 36VDC.
• High efficiency LED produces UV light with a peak wavelength of 275 nm.
• Effective range for bio-fouling control is approx 6 inches (15cm)
• 125 degree view angle allows for wide area coverage.
• SAIS LED lights are 100% dimmable via analog or over Ethernet connection.
• By adding the SAIS Ethernet interface and PoE Adapter to your system, the lights can be fully integrated into an Ethernet connected remote imaging system. Control can be achieved by human interface using a standard web browser or completely autonomously via HTTP commands.
• Can be powered directly from PoE source using the SAIS Ethernet interface and PoE Adapter (sold separately).

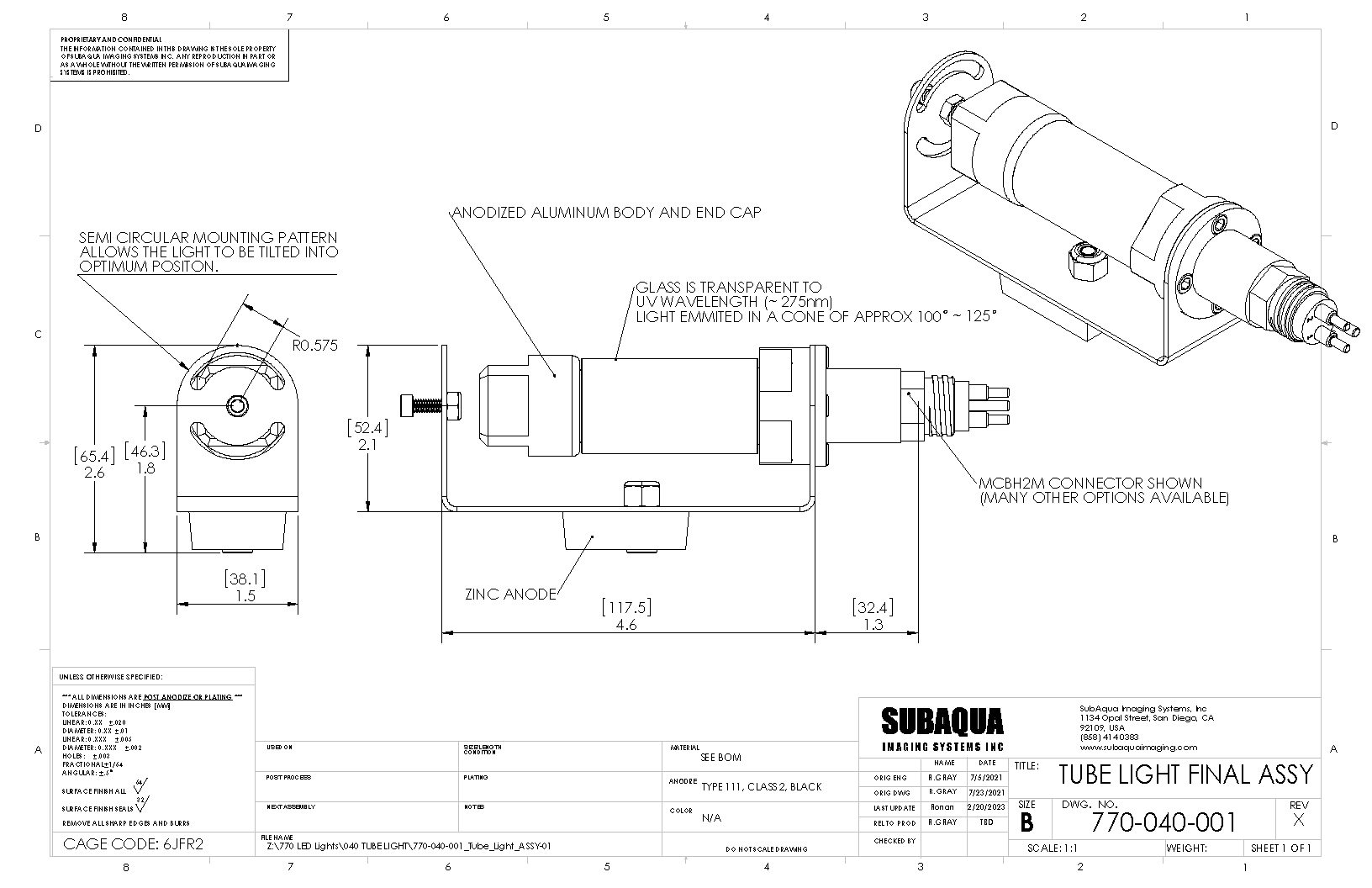

See the Spec Sheet and Technical Drawing above for options and contact us for pricing.
